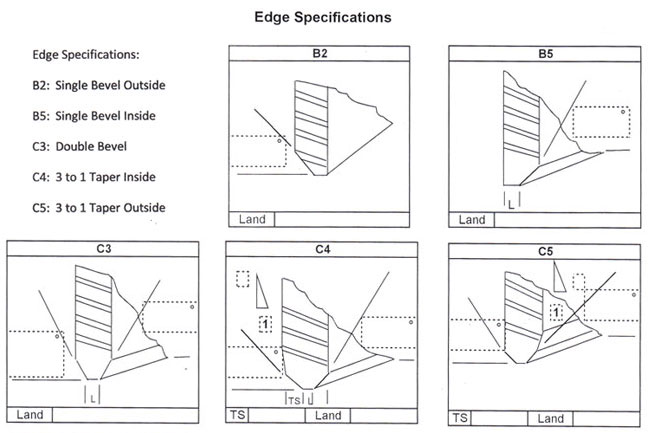

Tank Head Specifications
(In addition to tank heads, we fabricate Segmented Domes with virtually no size limitations.)
We offer our products in the following materials:
- Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)
- Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)
- Copper: O-Temper Material (Forming Only)
- Aluminum: O-Temper Material (Forming Only)

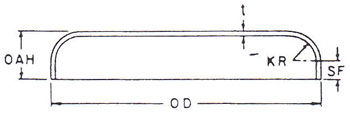

Flanged Only |
|
|
Nominal Thickness |
Flanged Only |
3/16" |
30" - 144" OD |
1/4" |
30" - 180" OD |
5/16" |
30" - 240" OD |
3/8" |
30" - 216" OD |
1/2" |
30" - 186" OD |
|

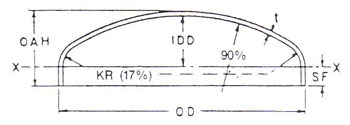

2:1 Elliptical |
| |
Nominal Thickness |
Flanged Only |
1/4" |
36" - 144" OD |
5/16" |
36" - 144" OD |
3/8" |
36" - 144" OD |
1/2" |
54" - 144" OD |
5/8" |
60" - 144" OD |
|

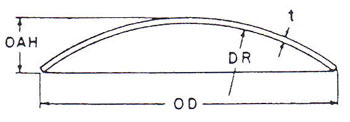

Dished Only |
|
|
Nominal Thickness |
Flanged Only |
3/16" |
24" - 96" OD |
1/4" |
24" - 144" OD |
5/16" |
24" - 192" OD |
3/8" |
24" - 192" OD |
1/2" |
24" - 186" OD |
5/8" |
24" - 162" OD |
3/4" |
24" - 144" OD |
|

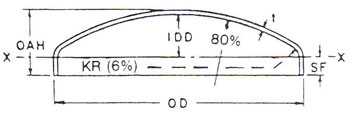

Special F & D |
|
|
Nominal Thickness |
Flanged Only |
3/16" |
30" - 84" OD |
1/4" |
30" - 132" OD |
5/16" |
30" - 144" OD |
3/8" |
30" - 144" OD |
1/2" |
54" - 144" OD |
5/8" |
54" - 144" OD |
3/4" |
60" - 138" OD |
|

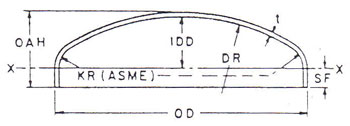

ASME Code Flanged & Dished |
|
|
Nominal Thickness |
Flanged Only |
3/16" |
24" - 84" OD |
1/4" |
24" - 132" OD |
5/16" |
30" - 168" OD |
3/8" |
30" - 192" OD |
1/2" |
54" - 174" OD |
5/8" |
54" - 168" OD |
3/4" |
60" - 150" OD |
|

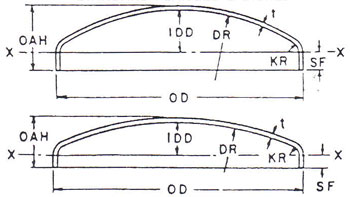

Standard F & D and Flanged and Shallow Dished |
|
|
Nominal Thickness |
Flanged Only |
3/16" |
24" - 96" OD |
1/4" |
24" - 132" OD |
5/16" |
30" - 168" OD |
3/8" |
30" - 198" OD |
1/2" |
54" - 186" OD |
5/8" |
54" - 168" OD |
3/4" |
60" - 150" OD |
|
